      Wiring Diagram V-3 - Units produced after 10/1/2023 to Now: Streamlined and Optimized.

      WAGO Clip Harness with Improved Color Coding Version V-3 of the OGO™ ORIGIN Compost Toilet wiring harness was officially released on October 1, 2023. This harness is now standard in all production units from that date forward.

      What’s New in V-3

      • WAGO clips replace the older push or crimp connectors

      • Streamlined, intuitive wire color mapping

      • LED/button, fan, motor, and sensor circuits are clearly separated

      • Supports the latest 4-wire timer and LED assemblies

      • Optimized for field servicing and DIY maintenance

      image (7)

      V-3 Wiring Overview (Color Key)

      Match these wire colors to function:

      • Red wire → +12V Power

      • Black or Blue wire → Ground

      • White wire → Motor Output +12V

      • Green wire → Motor Input Trigger

      • Yellow wire → Sensor Output Trigger

      Labeled Layout View

      Breaks the wiring down by component cluster:

      1. Button + LED

      2. Power Jack + Fan Housing

      3. Urine Sensor

      4. Timer + Motor Connection

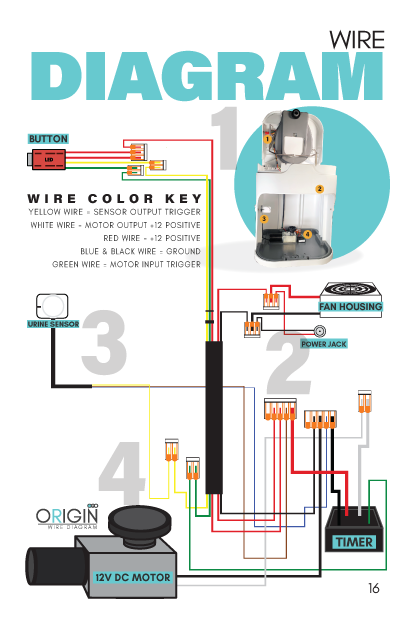

      Simplified Visual Diagram

      A clean, no-label version showing the full system in a wiring-focused layout—perfect for installs and quick-reference. Also found in your new user manual included with every unit.

      PG17_Wiring Chart
