      How to Swap the Vent and Filter Inserts on Your OGO™ ORIGIN Compost Toilet

      Customize your setup for optimal airflow and space efficiency.

      The OGO™ ORIGIN is designed with flexibility in mind, allowing you to adapt its components to suit your specific installation needs. One such feature is the ability to swap the vent and filter inserts, enabling you to optimize airflow and accommodate tight spaces in your RV, van, tiny home, or boat.​

      Swap Vent in an OGO™ ORIGIN Compost Toilet.

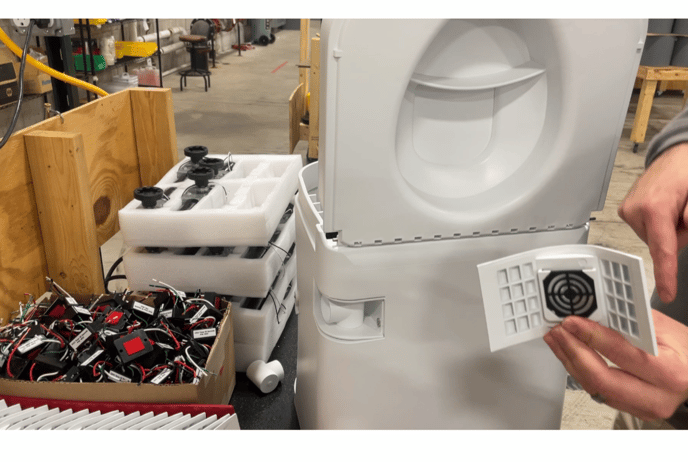

      Filter Orientation

      Why Swap the Vent and Filter Inserts

      By default, the OGO™ ORIGIN comes with the fan housing on the right and the filter intake on the left. However, certain installations may benefit from reversing these positions. Swapping the inserts can:​

      • Improve airflow in enclosed or humid environments.

      • Simplify hose routing in compact or uniquely configured spaces.

      • Enhance ventilation efficiency by aligning components with your build's layout.​

      FilterOrientation

      Vent Insert Hold

      InstallVentInsertHold

      Tools You'll Need

      • A flathead screwdriver (preferably sizable)​

      Step-by-Step Guide to Swapping Inserts

      1. Power Down: Ensure your OGO™ ORIGIN is turned off and disconnected from any power source.​

      2. Access the Inserts: Open the unit to locate the vent and filter inserts.

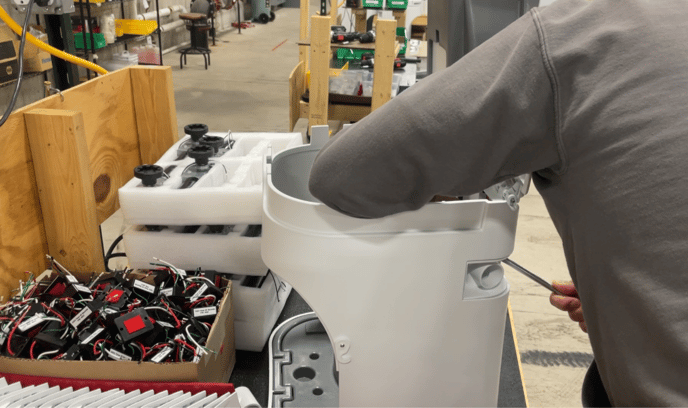

      3. Remove the Inserts: Using the flathead screwdriver, gently pry out the vent and filter inserts. It's recommended to start from the edge where the power jack is installed for easier access.​

      4. Swap Positions: Place the vent insert into the previous filter insert slot and vice versa. Ensure they are securely fitted.​

      5. Reconnect Components: Reattach any hoses or connections to the newly positioned inserts.​

      6. Power Up: Reconnect the power and turn on your OGO™ ORIGIN to test the new configuration.​

      Additional Tips

      • High-CFM Fan Upgrade: If you're operating in particularly humid conditions or have a longer vent hose run, consider upgrading to a high-CFM fan to enhance airflow.​

      • Charcoal Filters: For added odor control, especially in marine environments or areas with limited ventilation, charcoal filters can be installed within the vent housing.​

      • Vent Hose Compatibility: The standard vent hose has an outer diameter of 1.6825" and fits snugly over 1-1/4" PVC pipes, ensuring a secure connection.​
